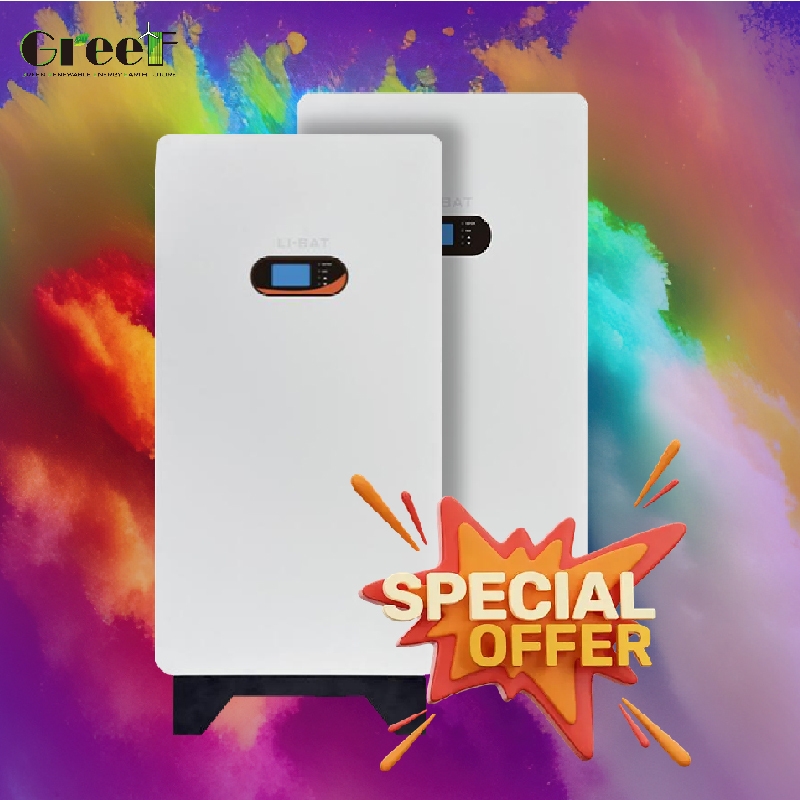

Το προϊόν υιοθετεί σχεδιασμό τύπου βάσης, όμορφο σχήμα και βολική μετακίνηση. συμπεριλαμβανομένου του πρωτοκόλλου μετατροπέα της κύριας αγοράς, επικοινωνεί άμεσα. υιοθετεί μια ολοκληρωμένη και πολυεπίπεδη στρατηγική προστασίας μπαταρίας και μέτρα απομόνωσης βλαβών για να εξασφαλίσει την ασφαλή λειτουργία του συστήματος. Χρησιμοποιείται ευρέως σε μικρές εμπορικές και οικογενειακές αποθήκευσης ενέργειας.
Παράμετροι Προϊόντος
Μοντέλο
GBP48-280H
GBP48-314H
GBP51.2-280H
GBP51.2-314H
Ονομαστική τάση (V)
48
51.2
Προδιαγραφή κυψέλης (Ah)
280
314
280
314
Ονομαστική χωρητικότητα (Ah)
280
314
280
314
Εύρος τάσης λειτουργίας
42~54.75
44.8~58.4
Συνιστώμενη τάση φόρτισης (V)
51.75
55.2
Τυπικό ρεύμα φόρτισης (A)
100
Μέγιστο συνεχές ρεύμα φόρτισης (A)
150
Τυπικό ρεύμα εκφόρτισης (A)
100
Μέγιστο ρεύμα εκφόρτισης (A)
150
Κατάλληλη θερμοκρασία (℃)
-30~60 (Συνιστάται 10~35)
Επιτρεπόμενο εύρος υγρασίας (%RH)
85
Θερμοκρασία αποθήκευσης (℃)
-20~65 (Συνιστάται 10~35)
Επίπεδο προστασίας
IP20
Μέθοδος ψύξης
Φυσική ψύξη αέρα
Μέγιστο μέγεθος (Β*Π*Υ)mm
246*480*990
Καθαρό βάρος (kg)
138.5
142.5
141
145
Λεπτομέρειες Προϊόντος
Λύση Συστήματος
Αυτό το διάγραμμα συστήματος είναι μόνο για αναφορά, εάν έχετε άλλες απαιτήσεις,επικοινωνήστε μαζί μας!
Παράδειγμα έργου
Περισσότερα προϊόντα
Συσκευασία προϊόντος
Γιατί να μας επιλέξετε
Αξιολογήσεις & Κριτικές
Συνολική Αξιολόγηση
5.0
Βασισμένο σε 50 αξιολογήσεις για αυτόν τον προμηθευτή
This canal flows day and night – I never thought it could make money. After Greef installed the system, it runs by itself. Every day I check my phone to see how much electricity was generated and how much I earned. I'll recover my investment in less than a year, and after that it's pure profit.
My farm is 30 kilometers from town, and connecting to the power grid would cost a fortune. Three years ago, I installed a solar panel system with a battery bank. It was sufficient during spring, summer, and fall, but in winter, we often had a week of consecutive overcast days—and the batteries would run out in just three days. Last year, I decided to add a variable-pitch wind turbine, connected it to the AC coupling port of the Deye inverter, and set up a hybrid solar-wind system. Throughout the entire winter, the battery level never dropped below 45%, and I never had to work in the dark again. The Deye app allows me to monitor both the solar and wind turbine data simultaneously, and the transition between them is so smooth it’s almost imperceptible.
Relying solely on solar power during winter on a Nordic farm is a gamble. Only by combining a variable-pitch wind turbine with a Deye inverter—creating a wind-solar hybrid system—can you get through the winter with peace of mind.
I run a small dairy farm in northern Norway, far from the power grid. A few years ago, I installed solar panels and a Deye inverter, but the solar system basically stops working in winter, and the diesel generator was costing me a fortune. This year, I added this variable-pitch wind turbine and connected it to the Deye inverter for a hybrid solar-wind system, and we haven’t had a single power outage all winter. This wind turbine starts up at low wind speeds of just 2–3 on the Beaufort scale. During blizzards, the blades automatically pitch down to slow the turbine, preventing runaway speeds, and it’s much quieter than my neighbor’s fixed-pitch model. The Deye inverter’s switching logic is smart—it prioritizes solar power when available, and automatically switches to the wind turbine when solar output drops. It’s all clearly visible on the app. Now, the diesel generator is practically idle. Wind and solar backing each other up—that’s true off-grid freedom.
