Name: On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

Σπίτι > προϊόντα > Στον ελεγκτή πλέγματος >

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

Rectifier Function On Grid Controller

Control Function Grid-Tied Controller

DC Output Function Wind Generator Controller

Μάρκα:

Greef

Πιστοποίηση:

Model Number:

GT-PCTC Series Controller

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Λεπτομέρειες για το προϊόν

Τύπος προϊόντος:

Προστασία από υπερτάσεις, Προστασία από διακοπή του δικτύου, Ρυθμισμένη έξοδος τροφοδοσίας, Απαλλαγή

έλεγχος πλέγματος:

Ναί

Μέθοδος Ψύξης:

Φυσική συγκέντρωση

Λειτουργία:

Διορθωτής, έλεγχος, έξοδος συνεχούς ρεύματος

Βαθμός προστασίας:

IP20 (εντός) IP65 (εξωτερικά)

Μόνιμη τάση PWM:

≥ 400dc, ≥ 700dc

Απόδοση MPPT:

99,9%

Συχνότητα εξόδου:

50Hz/60Hz

Όροι πληρωμής και αποστολής

Minimum Order Quantity

1Set

Τιμή

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Όροι πληρωμής

T/T,Western Union,MoneyGram,L/C

Supply Ability

ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Βρείτε την καλύτερη τιμή

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Βρείτε την καλύτερη τιμή

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Βρείτε την καλύτερη τιμή

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

Wind Turbine Grid-Tied Controller AC220V-600V with Manual Function and Emergency Switch

Product Overview

The Grid-Tied Controller is a critical component for wind generator systems connected to the power grid. This advanced controller converts three-phase AC current from wind turbines into DC current for grid-tie inverters, featuring dual safety systems (PWM constant voltage and three-phase dump load brake) for optimal performance and reliability.

Key Features

Compatible with leading solar inverters (Growatt, Deye, Solis, lvet)
Double safety control systems for enhanced protection
LCD touch screen display with comprehensive monitoring
Manual brake, reset, and emergency switch functions
Multiple protection features including over voltage and grid cut-off
Optional communication interfaces (RS485/USB/GPRS/WIFI/Ethernet)

Technical Specifications

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
PWM constant voltage	≥400dc	≥700dc	≥700dc	≥700dc

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW	GT-ACDC-50KW	GT-ACDC-100KW
Wind turbine rated power	10KW	20KW	30KW	50KW	100KW
Wind turbine rated voltage	AC380-520V

General Specifications

Environment temperature: -30-60°C
Relative humidity: ＜90% (No condensation)
Noise (1m): ＜40dB
Degree of protection: IP20 (Indoor) / IP65 (Outdoors)
Cooling method: Forced air cooling

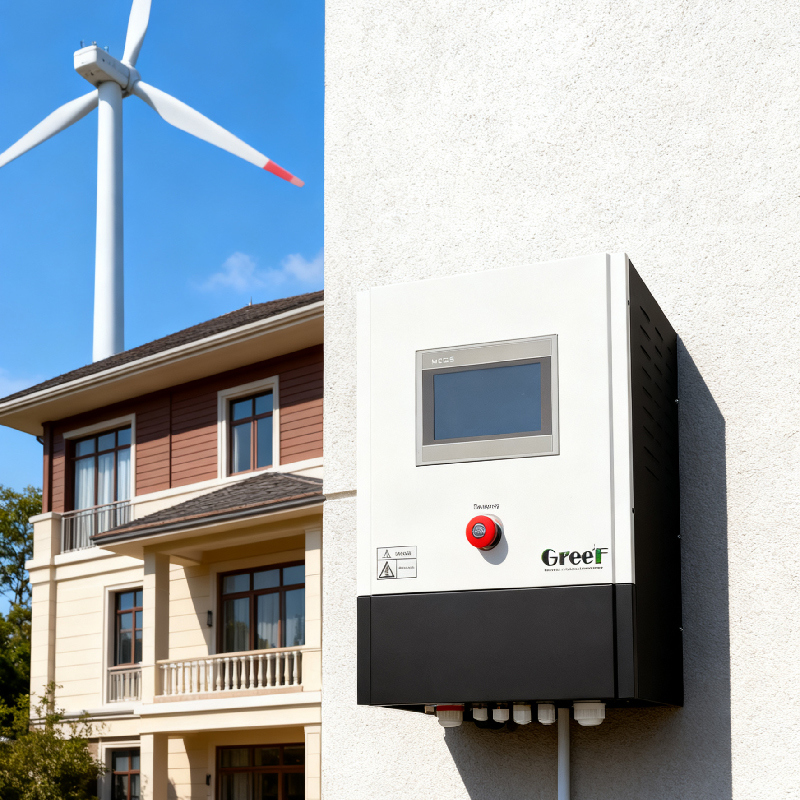

Greef has a professional team to create tailor-made systems for customers. The images shown are examples - contact us for custom requirements.

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Customization Options

Brand Name: Greef
Model Number: GT-PCTC Series Controller
Certification: CE
Minimum Order Quantity: 1 Set
PWM Constant Voltage: ≥400dc, ≥700dc
MPPT Efficiency: 99.9%

Packaging & Shipping

Package Includes: Controller unit, user manual, mounting hardware
Packaging: Foam + plywood case
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
