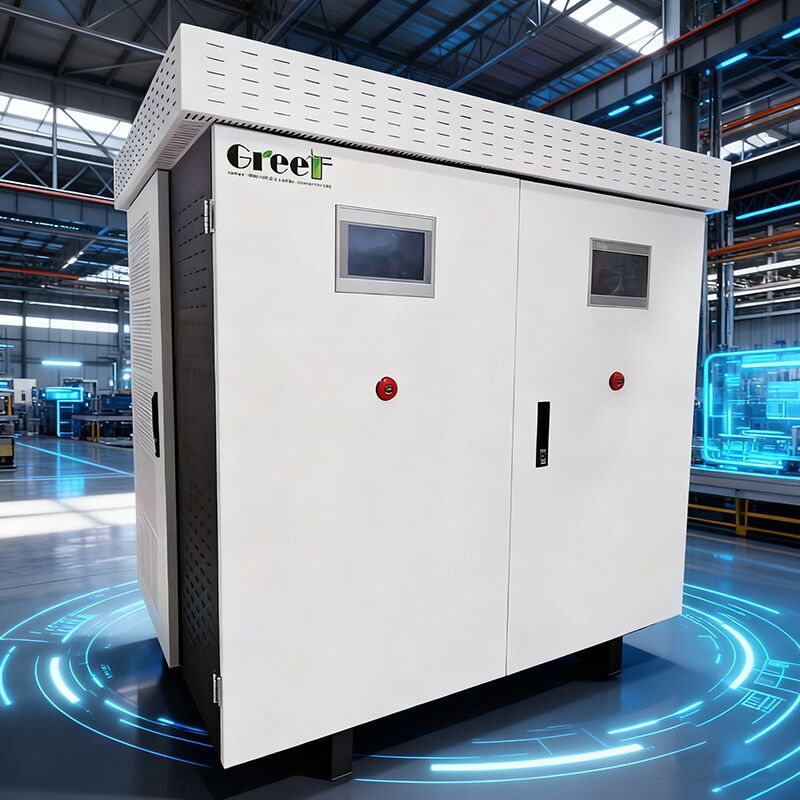

Name: AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Σπίτι > προϊόντα > Στον ελεγκτή πλέγματος >

AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power

50Hz/60Hz Rated Grid Frequency On Grid Controller

-40 to 60 Degrees Environment Temperature Wind Controller

100 kW Rated Power AC Generator-Battery Hybrid Converter

Μάρκα:

Greef

Πιστοποίηση:

Model Number:

AC PCS

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power

Λεπτομέρειες για το προϊόν

Ονομαστική συχνότητα δικτύου ((Hz):

50HZ/60HZ

Θέρμανση περιβάλλοντος:

-40 ~ 60

Ονομαστική τάση (VAC):

≥ 320

Ονομαστικό ρεύμα φόρτισης και εκφόρτισης (A):

144

Λειτουργία επικοινωνίας:

Ethemet, RS485, WIFI

Τοπολογία:

AC-DC Reticifier, DC- DC Buck Boost, DC-AC Invertor.EMS

Ονομαστική τάση μπαταρίας (Vdc):

400

Βέλτιστη ονομαστική τάση γεννήτριας (Vac):

450

Όροι πληρωμής και αποστολής

Minimum Order Quantity

1Set

Τιμή

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Όροι πληρωμής

T/T,Western Union,MoneyGram,L/C

Supply Ability

ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Βρείτε την καλύτερη τιμή

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Βρείτε την καλύτερη τιμή

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Βρείτε την καλύτερη τιμή

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

AC Generator-Battery Hybrid Converter

Integrated Power Conversion System

The GREEF ENERGY multi-functional converter integrates AC-to-DC rectification for Permanent Magnet generators, battery charging, and DC-to-AC inversion in a single system. Featuring advanced energy management and dual LCD touchscreen interface, this converter provides stable voltage and frequency control for Permanent Magnet Synchronous Generators (PMSGs), ensuring reliable power supply to connected loads. Configurable grid-tied operation enables seamless integration with both standalone and grid-connected power systems.

Technical Specifications

Generator Input

Rated Power: 100 kW

Voltage Range: 240-550 Vac

Optimal Voltage: 450 Vac

Max Current: 180 A

Battery System

Type: Lithium-ion

Voltage Range: 350-450 Vdc

Rated Voltage: 400 Vdc

Max Charge/Discharge: 250 A

Grid Output

Rated Power: 100 kW

Max Power: 120 kW

Voltage: 300-460 V

Frequency: 50/60 Hz

Performance & Protection

Parameter	Specification
Efficiency	Up to 95%
Power Factor	>0.99 (adjustable -1 to 1)
THD	<3% at rated power
Overload Capacity	1.2x rated power for 1 minute
Protection Level	IP54
Operating Temperature	-40°C to 60°C
Max Altitude	4,000 meters

System Features

AC-DC rectification, DC-DC buck boost, and DC-AC inversion topology
Energy Management System (EMS)
Dual LCD SMART touchscreen interface
Intelligent air cooling system
Communication: Ethernet, RS485, WiFi
Standby power consumption: <50 W

Applications

Renewable Energy Systems

Integration with PMSG wind turbines and hydro turbines for off-grid or hybrid power setups

Off-Grid & Backup Power

Central hub for remote locations, cabins, telecom stations with generator input, battery charging, and inverter control

Grid-Interactive Systems

Grid-tied operation for battery charging and potential grid feedback

Industrial & Commercial Power

Stable power supply under unbalanced loads with remote monitoring via WIFI/LAN and Modbus integration

Customization & Ordering

The GREEF ENERGY AC PCS On Grid Controller offers comprehensive customization options with detailed monitoring capabilities including generator speed, input/output parameters, and power generation statistics. CE certified and manufactured to highest standards.

Physical Dimensions

Height: 1500 mm
Width: 1500 mm
Depth: 1300 mm
Weight: ≤ 600 kg (excluding dump load)

Order Information

Parameter	Details
Minimum Order	1 set
Delivery Time	~25 working days
Payment Terms	T/T, Western Union, MoneyGram, L/C
Packaging	Foam and plywood cases
